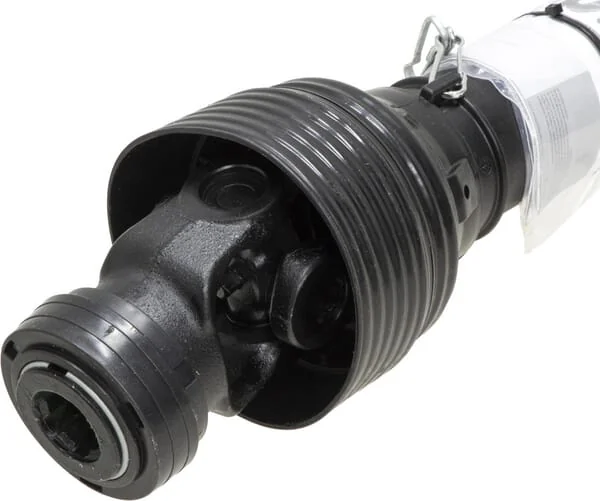

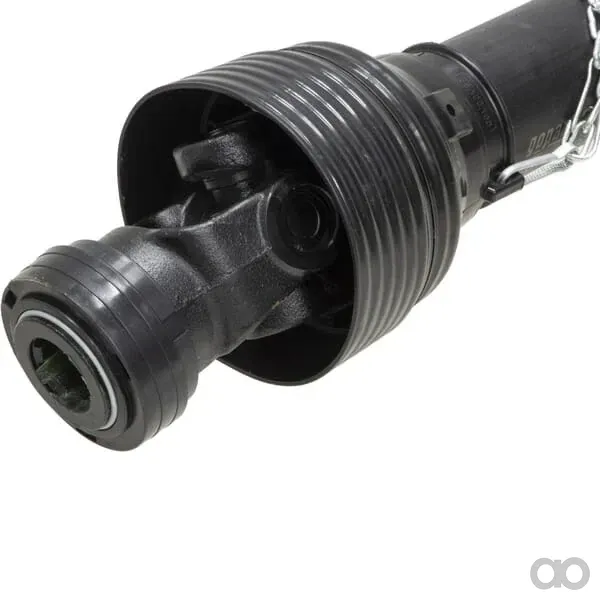

Gopart - PTO10Y21T1210GP - PTO Shaft PTO 10 L: 1210mm

OEM Quality

SKU: gopart-pto10y21t1210gp

Gopart - PTO10Y21T1210GP - PTO Shaft PTO 10 L: 1210mm

86,14 €70,61 € (IVA esclusa)

Disponibile su ordinazione – confermeremo la data di consegna disponibile più vicina entro 1 giorno lavorativo dall'ordine
Spedizione gratuita

Paga in sicurezza con

Prezzo

86,14 €

Meets all international safety requirements Provided with "CE" marking Max. dyn. power 540 rpm: 12kW - 210Nm Max. dyn. Power 1000 rpm: 18kW - 170Nm
Gopart
Gopart supplies spare parts and components for agricultural machinery, including tractors and implements. The brand offers a wide range of replacement parts for engines, hydraulics, and transmission systems. Gopart products are designed to meet OEM standards, ensuring compatibility and reliability in farming operations. Shop more than 387 genuine Gopart spare parts.

Marca
Gopart
Part Numbers
pto10y21t1210gp
Pros
Good value for money
Unit
Each
Details
Good price/performance ratio
Benefits
Cost-effective alternative in lower capacity range
Size code
PTO 10
Properties
Fulfils all international safety requirements CE marking available
Power 540 rpm
12 kW
Power 1000 rpm
18 kW
Technical info
Max. dynamic capacity 540 rpm: 12 kW, 210 Nm Max. dynamic capacity 1000 rpm: 18 kW, 170 Nm
Product details
Meets all international safety requirements Provided with "CE" marking Max. dyn. power 540 rpm: 12kW - 210Nm Max. dyn. Power 1000 rpm: 18kW - 170Nm
Long description
PTO shafts standard series 10 for log splitters, crop sprayers and fertiliser spreaders etc. A cost-effective alternative in the lower power range
Application range
Wood splitter Crop sprayer Chemical fertiliser spreaders
Max dynamic torque
320 N·m
Profile tube shape
Triangular
Attachment machine side
Quick disconnect yoke
Attachment tractor side
Quick disconnect yoke
Inner tube wall thickness
4 mm
Outer tube wall thickness
3,2 mm
Locking type by machine side
Collar lock
Locking type by tractor side
Collar lock
Inner tube large outside diameter
29 mm
Outer tube large outside diameter
36 mm
Cross joint length by machine side
54 mm
Cross joint length by tractor side
54 mm
Cross joint bush diameter by machine side
22 mm
Cross joint bush diameter by tractor side
22 mm
Connection outside diameter by machine side
1-3/8 Inch
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Connection number of splines/grooves by tractor side
6
EAN
8719493074734
Produttore
Gopart
