Walvoil - DFE106004 - 6/2 Valve 24DC 1/2

OEM Quality

SKU: walvoil-dfe106004

Walvoil - DFE106004 - 6/2 Valve 24DC 1/2

247,10 €202,54 € (IVA esclusa)

Disponibile - pronto per la spedizione

Spedizione entro 96 ore
Spedizione gratuita

Paga in sicurezza con

Prezzo

247,10 €

Transfer valves allow oil flows to be switched between 2 or more users in a simple and compact way. This makes it possible to control multiple hydraulic functions with one control valve. These Walvoil 6/2 shuttle valves are available in several construction sizes and electrical voltage versions. The Walvoil DFE valve is designed for tough applications and can withstand extreme environmental conditions, making it ideally suited for use in agriculture, construction and industry. Show more
Walvoil
Walvoil progetta e produce componenti e sistemi idraulici per macchinari agricoli e industriali. Il marchio si specializza in valvole, pompe e unità di sterzo per trattori e attrezzature off-road. I suoi prodotti garantiscono un controllo preciso dei fluidi e affidabilità nelle operazioni agricole ad alta intensità. Acquista oltre 177 ricambi originali Walvoil.

Marca
Walvoil
Part Numbers
dfe106004
Unit
Each
Includes
Plug SP666 is not included
Valve size
10
Total length
240,4 mm
Max. flow rate
90 l/min
Supply voltage
24 V
Product details

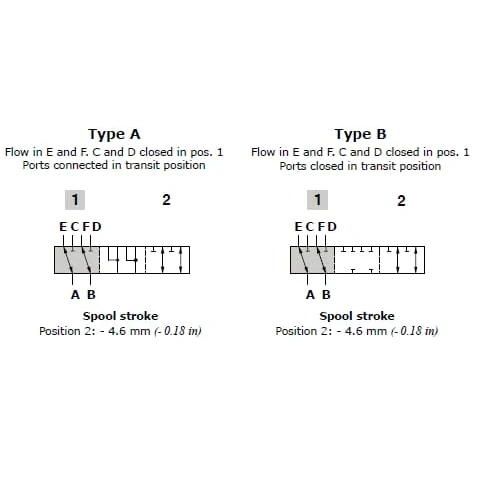

Connection 3/8", 1/2" Max. Operating pressure: 200 bar without leakage oil connection, 315 bar with leakage oil connection Limited switchability under pressure Typ A : ports connected in transition position Typ B : ports closed in transition position
Long description
Transfer valves allow oil flows to be switched between 2 or more users in a simple and compact way. This makes it possible to control multiple hydraulic functions with one control valve. These Walvoil 6/2 shuttle valves are available in several construction sizes and electrical voltage versions. The Walvoil DFE valve is designed for tough applications and can withstand extreme environmental conditions, making it ideally suited for use in agriculture, construction and industry. Show more
Plunger type code
B
Ports thread type
BSP
Workports diameter
1/2 Inch
Max working pressure
200 BAR
Working pressure with drain
315 BAR
Produttore
Walvoil
