Walterscheid - WWE2480860 - Wide Angle Universal Joint Shaft SD25

OEM Supplier

SKU: walterscheid-wwe2480860

Walterscheid - WWE2480860 - Wide Angle Universal Joint Shaft SD25

1323,57 €1084,89 € (IVA esclusa)

Disponibile - pronto per la spedizione

Spedizione entro 96 ore
Spedizione gratuita

Paga in sicurezza con

Prezzo

1323,57 €

PTO shaft 1-sided wide-angle with safety guard Declaration of conformity User instructions- Tractor side 1-3/8" (6) puller fastening Machine side 1-3/8" (6) spring pin Lubricating interval of 8 hours Meets the requirements according to EC 89/392 EEC Meets safety standard EN12965 Provided with "CE" marking-Angle in continuous use maximum 25º Angle may be 80° only briefly Max. dyn. power 540 rpm: 39kW - 695Nm Max. dyn. power 1000 rpm: 61kW - 580Nm Values at bending angle 10° and service life 1000 hours LZ= Retracted length c.t.c. outer cross
Walterscheid
Walterscheid è un produttore leader di componenti per trasmissione e sistemi di trasmissione del moto per macchinari agricoli. Il marchio produce alberi a cinghia, giunti e riduttori per trattori e attrezzi. Le sue soluzioni sono progettate per elevati livelli di coppia e durata in applicazioni agricole impegnative. Acquista oltre 5.365 ricambi originali Walterscheid.

Marca
Walterscheid
Part Numbers
wwe2480860
Unit
Each
Length
860 mm
Size code
WWE 2480
Properties
Tractor side 1-3/8" (6) shaft collar kit Device side 1-3/8" (6) slide pin Lubrication interval: 8 hours Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available
Consists of
Wide angle pto-shaft, 1 sided, with guard tube Declaration of conformity Instruction manual
Power 540 rpm
39 kW
Power 1000 rpm
61 kW
Technical info

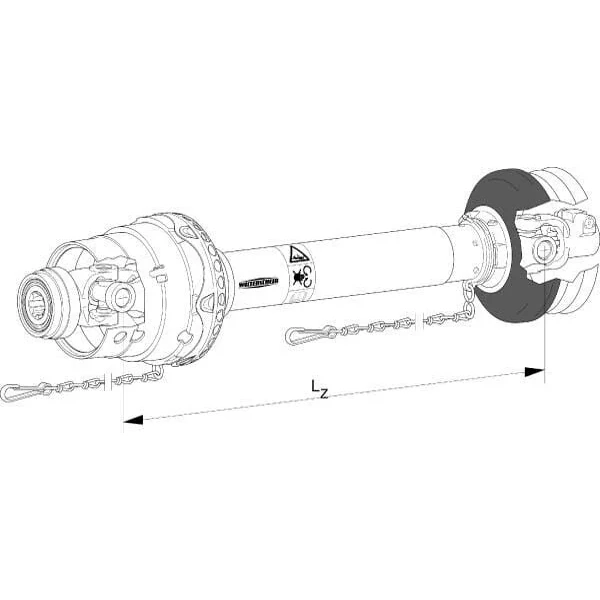

Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 39 kW, 695 Nm Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm Values at working angle 10° and service life 1000 hours LZ = slid in length centre distance of outer intersection
Product details
PTO shaft 1-sided wide-angle with safety guard Declaration of conformity User instructions- Tractor side 1-3/8" (6) puller fastening Machine side 1-3/8" (6) spring pin Lubricating interval of 8 hours Meets the requirements according to EC 89/392 EEC Meets safety standard EN12965 Provided with "CE" marking-Angle in continuous use maximum 25º Angle may be 80° only briefly Max. dyn. power 540 rpm: 39kW - 695Nm Max. dyn. power 1000 rpm: 61kW - 580Nm Values at bending angle 10° and service life 1000 hours LZ= Retracted length c.t.c. outer cross
Protection type
ST25
Long description
Wide-angle PTO shafts 80° series WWE 2480 / 80°
Application range
Mixing wagon Slurry wagon Harvesters Silage wagon
Max static torque
4000 N·m
Inner tube profile
1bGA
Outer tube profile
2aG
Profile tube shape
Lemon
Attachment machine side
Quick disconnect yoke
Attachment tractor side
Quick disconnect yoke
Inner tube wall thickness
4,5 mm
Outer tube wall thickness
3,5 mm
Locking type by machine side
Collar lock
Locking type by tractor side
Collar lock
Inner tube large outside diameter
49 mm
Outer tube large outside diameter
57,5 mm
Cross joint length by machine side
76 mm
Cross joint length by tractor side
76 mm
Cross joint bush diameter by machine side
32 mm
Cross joint bush diameter by tractor side
32 mm
Connection outside diameter by machine side
1-3/8 Inch
Connection outside diameter by tractor side
1-3/8 Inch
Cross joint length by tractor side - longer part
94 mm
Connection number of splines/grooves by machine side
6
Connection number of splines/grooves by tractor side
6
Cross joint bush diameter by tractor side - longer part
27 mm
EAN
8432970200050
Produttore
Walterscheid
