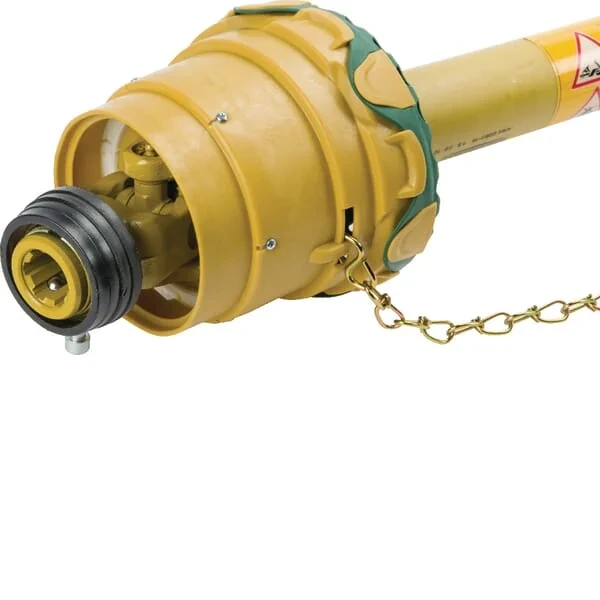

Walterscheid - WWE22801410 - Wide Angle PTO SD15

OEM Supplier

SKU: walterscheid-wwe22801410

Walterscheid - WWE22801410 - Wide Angle PTO SD15

1150,63 €943,14 € (IVA esclusa)

Disponibile - pronto per la spedizione

Spedizione entro 96 ore
Spedizione gratuita

Paga in sicurezza con

Prezzo

1150,63 €

Walterscheid
Walterscheid è un produttore leader di componenti per trasmissione e sistemi di trasmissione del moto per macchinari agricoli. Il marchio produce alberi a cinghia, giunti e riduttori per trattori e attrezzi. Le sue soluzioni sono progettate per elevati livelli di coppia e durata in applicazioni agricole impegnative. Acquista oltre 5.365 ricambi originali Walterscheid.

Marca
Walterscheid
Part Numbers
wwe22801410
Unit
Each
Length
1410 mm
Size code
WWE 2280
Properties
Tractor side 1-3/8" (6) shaft collar kit Device side 1-3/8" (6) slide pin Lubrication interval: 8 hours Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available
Consists of
Wide angle pto-shaft, 1 sided, with guard tube Declaration of conformity Instruction manual
Power 540 rpm
20 kW
Power 1000 rpm
31 kW
Technical info
Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 20 kW, 335 Nm Max. dynamic capacity 1000 rpm: 31 kW, 295 Nm Values at working angle 5° and service life 1000 hours LZ = slid in length centre distance of outer intersection
Protection type
SD15
Long description
Wide-angle CV PTO drive shafts complete 80° series WWE 2280 / 80°
Application range
Slurry tank Crop sprayers Drawn hay processing machine
Max static torque
1850 N·m
Inner tube profile
OvGA
Outer tube profile
1G
Profile tube shape
Lemon
Attachment machine side
Quick disconnect yoke
Attachment tractor side
Quick disconnect yoke
Inner tube wall thickness
4 mm
Outer tube wall thickness
2,7 mm
Locking type by machine side
Collar lock
Locking type by tractor side
Collar lock
Inner tube large outside diameter
40 mm
Outer tube large outside diameter
48 mm
Cross joint length by machine side
61 mm
Cross joint length by tractor side
61 mm
Cross joint bush diameter by machine side
24 mm
Cross joint bush diameter by tractor side
24 mm
Connection outside diameter by machine side
1-3/8 Inch
Connection outside diameter by tractor side
1-3/8 Inch
Cross joint length by tractor side - longer part
76 mm
Connection number of splines/grooves by machine side
6
Connection number of splines/grooves by tractor side
6
Cross joint bush diameter by tractor side - longer part
22 mm
Produttore
Walterscheid
