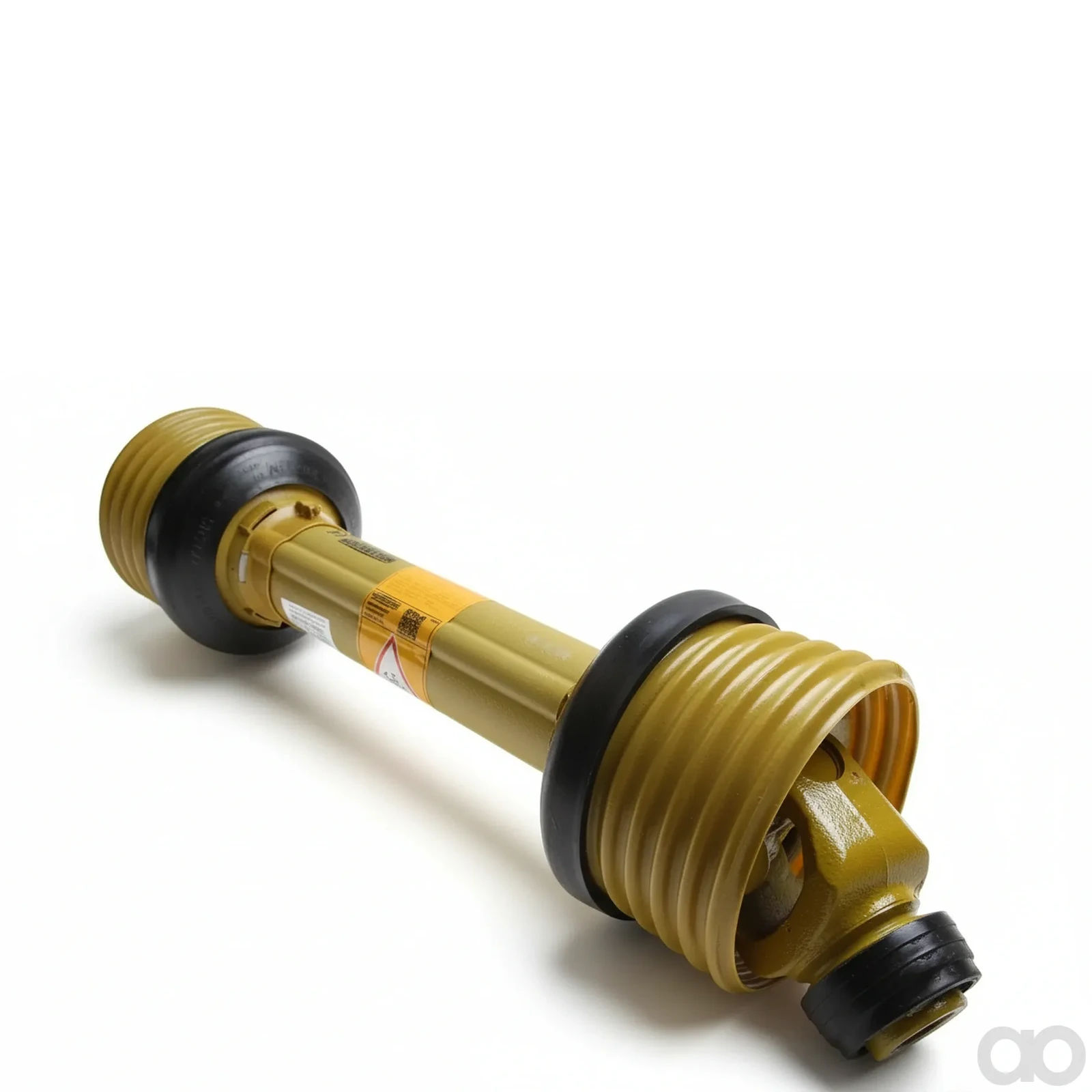

Walterscheid - W2400860 - PTO Shaft SD25

OEM Supplier

SKU: walterscheid-w2400860

Walterscheid - W2400860 - PTO Shaft SD25

551,29 €451,88 € (IVA esclusa)

Disponibile - pronto per la spedizione

Spedizione entro 96 ore
Spedizione gratuita

Paga in sicurezza con

Prezzo

551,29 €

Walterscheid
Walterscheid è un produttore leader di componenti per trasmissione e sistemi di trasmissione del moto per macchinari agricoli. Il marchio produce alberi a cinghia, giunti e riduttori per trattori e attrezzi. Le sue soluzioni sono progettate per elevati livelli di coppia e durata in applicazioni agricole impegnative. Acquista oltre 5.365 ricambi originali Walterscheid.

Marca
Walterscheid
Part Numbers
w2400860
Unit
Each
Length
860 mm
Size code
W2400
Properties
Tension side 1-3/8" (6) shaft collar kit Machine side 1-3/8" (6) slide pin Lubrication frequency from 50 to 100 hours Fulfilling the requirements laid out in EC 89/392 EEC Fulfilling the safety standard EN12965 CE marking available
Consists of
PTO shaft with shielding Declaration of conformity Instruction manual
Power 540 rpm
39 kW
Power 1000 rpm
61 kW
Technical info
See Walterscheid instruction manual Max. dynamic capacity 540 rpm: 39 kW, 695 Nm Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm Values at working angle 5° and service life 1000 hours LZ = slid in length in mm, from intersection to intersection
Protection type
ST25
Application range
Mower Harvesters Soil cultivating machinery
Max static torque
4000 N·m
Inner tube profile
1b
Outer tube profile
2a
Profile tube shape
Lemon
Attachment machine side
Quick disconnect yoke
Attachment tractor side
Quick disconnect yoke
Inner tube wall thickness
4,5 mm
Outer tube wall thickness
4 mm
Locking type by machine side
Collar lock
Locking type by tractor side
Collar lock
Inner tube large outside diameter
49 mm
Outer tube large outside diameter
57,5 mm
Cross joint length by machine side
76 mm
Cross joint length by tractor side
76 mm
Cross joint bush diameter by machine side
32 mm
Cross joint bush diameter by tractor side
32 mm
Connection outside diameter by machine side
1-3/8 Inch
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Connection number of splines/grooves by tractor side
6
EAN
8435194029896
Produttore
Walterscheid
