Walterscheid - W2100710 - Adapter

OEM Supplier

SKU: walterscheid-w2100710

Walterscheid - W2100710 - Adapter

419,79 €344,09 € (IVA esclusa)

Disponibile - pronto per la spedizione

Spedizione entro 96 ore
Spedizione gratuita

Paga in sicurezza con

Prezzo

419,79 €

Walterscheid
Walterscheid è un produttore leader di componenti per trasmissione e sistemi di trasmissione del moto per macchinari agricoli. Il marchio produce alberi a cinghia, giunti e riduttori per trattori e attrezzi. Le sue soluzioni sono progettate per elevati livelli di coppia e durata in applicazioni agricole impegnative. Acquista oltre 5.365 ricambi originali Walterscheid.

Marca
Walterscheid
Part Numbers
w2100710
Unit
Each
Length
710 mm
Size code
W2100
Properties
Tension side 1-3/8" (6) shaft collar kit Machine side 1-3/8" (6) slide pin Lubrication frequency from 50 to 100 hours Fulfilling the requirements laid out in EC 89/392 EEC Fulfilling the safety standard EN12965 CE marking available
Consists of
PTO shaft with shielding Declaration of conformity Instruction manual
Power 540 rpm
12 kW
Power 1000 rpm
18 kW
Technical info

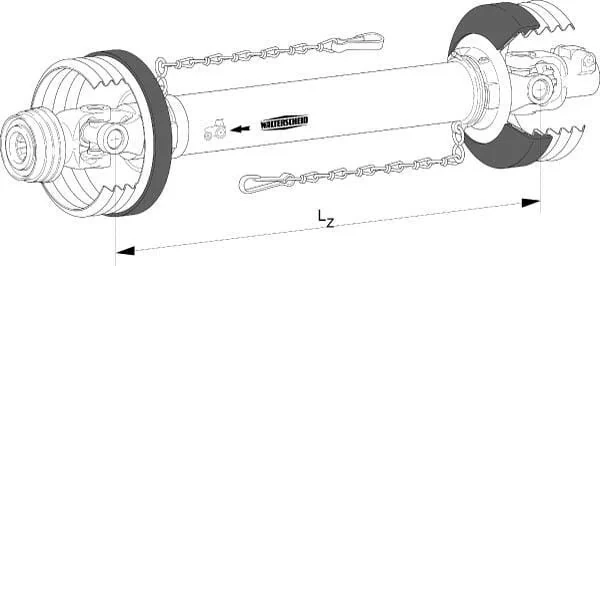

See Walterscheid instruction manual Max. dynamic capacity 540 rpm: 12 kW, 210 Nm Max. dynamic capacity 1000 rpm: 18 kW, 175 Nm Values at working angle 5° and service life 1000 hours LZ = slid in length in mm, from intersection to intersection
Protection type
SD05
Long description
PTO drive shafts complete standard series W 2100
Application range
Small crop sprayers Tedders Windrowers
Max static torque
1150 N·m
Inner tube profile
OOcH
Outer tube profile
Oa
Profile tube shape
Lemon
Attachment machine side
Quick disconnect yoke
Attachment tractor side
Quick disconnect yoke
Inner tube wall thickness
3,4 mm
Outer tube wall thickness
2,8 mm
Locking type by machine side
Collar lock
Locking type by tractor side
Collar lock
Inner tube large outside diameter
31 mm
Outer tube large outside diameter
39 mm
Cross joint length by machine side
55 mm
Cross joint length by tractor side
55 mm
Cross joint bush diameter by machine side
22 mm
Cross joint bush diameter by tractor side
22 mm
Connection outside diameter by machine side
1-3/8 Inch
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Connection number of splines/grooves by tractor side
6
EAN
8435194030588
Produttore
Walterscheid
