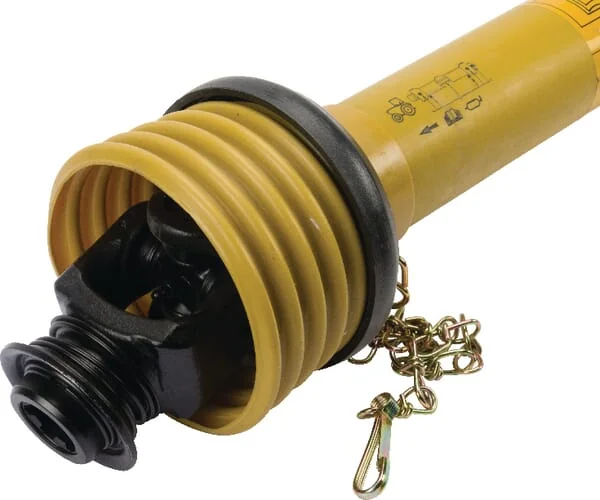

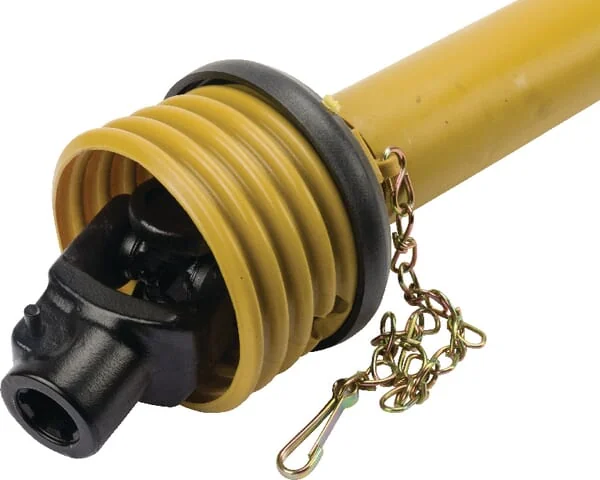

Walterscheid - W100E710 - Adapter Eco W100E/710 SD05

OEM Supplier

SKU: walterscheid-w100e710

Walterscheid - W100E710 - Adapter Eco W100E/710 SD05

283,44 €232,33 € (IVA esclusa)

Disponibile - pronto per la spedizione

Spedizione entro 96 ore
Spedizione gratuita

Paga in sicurezza con

Prezzo

283,44 €

Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 5,365 genuine Walterscheid spare parts.

Marca
Walterscheid
Part Numbers
w100e710
Unit
Each
Length
710 mm
Size code
W100E
Properties
Tractor side 1-3/8" (6) shaft collar kit Machinery side 1-3/8" (6) slide pin Lubrication interval: 8 hours CE marking awarded
Consists of
Pto shaft with guard tube Declaration of conformity Instruction manual
Power 540 rpm
12 kW
Power 1000 rpm
18 kW
Technical info
Follow the Walterscheid instruction manual Max. dynamic capacity 540 rpm: 12 kW, 210 Nm Max. dynamic capacity 1000 rpm: 18 kW, 175 Nm Values at a working angle of 5° and service life 700 hours
Protection type
SD05
Application range
Small crop sprayers Artificial fertiliser spreaders Tedders Windrowers
Max static torque
1000 N·m
Inner tube profile
OOc
Outer tube profile
Oa
Profile tube shape
Lemon
Attachment machine side
Quick disconnect yoke
Attachment tractor side
Quick disconnect yoke
Inner tube wall thickness
3,4 mm
Outer tube wall thickness
2,8 mm
Locking type by machine side
Collar lock
Locking type by tractor side
Collar lock
Inner tube large outside diameter
31 mm
Outer tube large outside diameter
39 mm
Cross joint length by machine side
55 mm
Cross joint length by tractor side
55 mm
Cross joint bush diameter by machine side
22 mm
Cross joint bush diameter by tractor side
22 mm
Connection outside diameter by machine side
1-3/8 Inch
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Connection number of splines/grooves by tractor side
6
EAN
8435194030649
Produttore
Walterscheid
