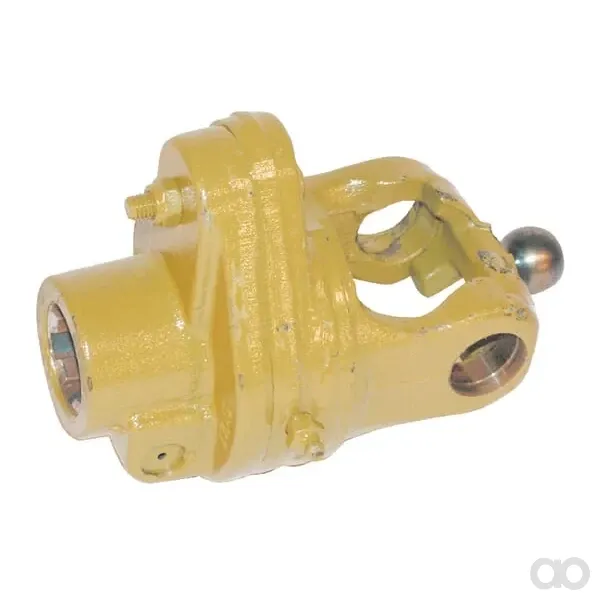

Walterscheid - 5717518 - LIMITER BOLT WW2580 1''3/8 Z6

OEM Supplier

SKU: walterscheid-5717518

Walterscheid - 5717518 - LIMITER BOLT WW2580 1''3/8 Z6

1522,88 €1248,26 € (IVA esclusa)

Disponibile su ordinazione – confermeremo la data di consegna disponibile più vicina entro 1 giorno lavorativo dall'ordine
Spedizione gratuita

Paga in sicurezza con

Prezzo

1522,88 €

Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 5,365 genuine Walterscheid spare parts.

Marca
Walterscheid
Part Numbers
5717518
Unit
Each
Details
Drive fully disconnected Repairable by replacing a shear bolt
Benefits
Prevents against subsequent damage Easy to start up
Properties
Regardless of direction of rotation Power transmission via shear bolts
Technical info
Protects against blockages and overload
Shaft size code
W2580
Clutch type code
KB61/20
Long description
Shear bolt clutches for wide-angle KB 61/2"0 cpl. 2370, 2380, 2480, 2580
Outside diameter
156 mm
Application range
Fertiliser pump Shredder Light balers
Max dynamic torque
2500 N·m
Max. rotation speed
1000 r/min
Share bolts circle radius
48
Share bolts thread length
60
Share bolts thread diameter
M10
Locking type by machine side
Clamp bolt (interfering)
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
EAN
8435194026758
Produttore
Walterscheid
