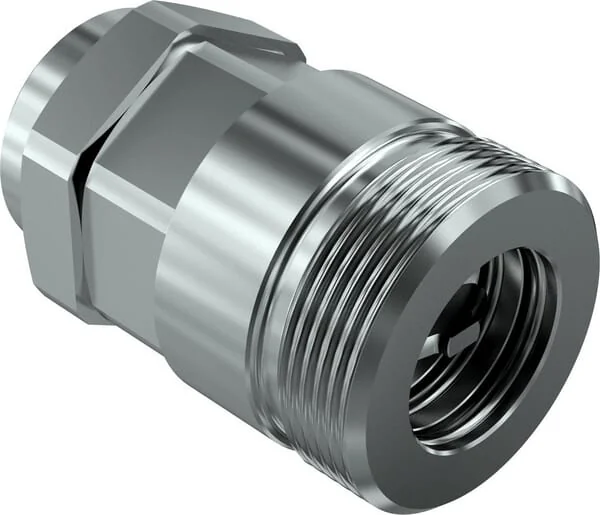

Faster - CVE34GASF - COUPLING

OEM Quality

SKU: faster-cve34gasf

Faster - CVE34GASF - COUPLING

40,91 €33,53 € (IVA esclusa)

Disponibile - pronto per la spedizione

Spedizione entro 96 ore
Spedizione gratuita per ordini superiori a €60

Paga in sicurezza con

Prezzo

40,91 €

Faster
Faster produce macchinari agricoli, tra cui attrezzi per lavorazione del terreno e accessori montati sui trattori. Il marchio si concentra su progettazioni robuste per compiti agricoli pesanti come aratura e semina. I suoi prodotti sono ampiamente utilizzati nell'agricoltura europea grazie alla loro affidabilità e prestazioni. Acquista oltre 276 ricambi originali Faster.

Marca
Faster
Part Numbers
cve34gasf
SW
46 mm
Type
Female
Unit
Each
Weight
705 g
Details
Screw-on sleeve on plug as wing nut and additional hex
LLength
132.5 mm
Benefits
Easy to couple
Material
Steel
BLength B
78 mm
Body size
20 mm
Connection
3/4" BSP
Properties
High flow Also suitable for fixed installation Can be used with many European market manufacturers
Valve type
Poppet
Type thread
F
ISO standard
20252 1179-1
Total length
3,07 Inch
EConnection 1
1.1/4 BSP
Seal material
Nitrile rubber [NBR]
Flow rate max.
120 l/min
L1Total length
78 mm
Material seals
NBR / PTFE
Q max. (l/min)
50 l/min
Technical info
Coupling must be screwed as tight as possible
Nominal pressure
360 BAR
Outside diameter
51 mm
Temperature max.
+125 °C
Temperature min.
-25 °C
Working pressure
350 BAR
Application range
Tipping cylinders on semi-trailers Vehicle construction Mineral oil-based fluids
Surface treatment
Chromium-plated
Interchangeable with
Edbro, VCR
Max working temperature
125 °C
Connection no 1 hex size
46 mm50 mm
Min. working temperature
-25 °C
Connectable under pressure
Yes
Connection no 1 thread type
BSP
Quick connection locking type
Thread
Quick connection working type
Screw
Connection 2, type - male/female
Female
Quick disconnection working type
Screw
Connection no 1 type - male/female
Female
Produttore
Faster
