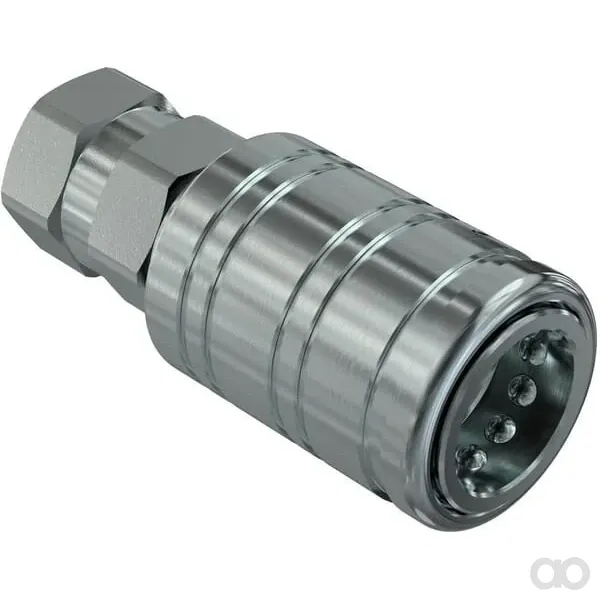

Faster - 3CPV12GASF - QUICK COUPLING 1/2 BSP

OEM Quality

SKU: faster-3cpv12gasf

Faster - 3CPV12GASF - QUICK COUPLING 1/2 BSP

40,91 €33,53 € (IVA esclusa)

Disponibile - pronto per la spedizione

Spedizione entro 96 ore
Spedizione gratuita per ordini superiori a €60

Paga in sicurezza con

Prezzo

40,91 €

Can be connected under operating pressure in the male coupling Push pull, can be connected with one hand Breakaway function ISO 7241-A Suitable for male couplings CNV Disconnecting under pressure only in emergencies Suitable plug 1/2": Faster NV12, Voswinkel SKPM12
Faster
Faster produce macchinari agricoli, tra cui attrezzi per lavorazione del terreno e accessori montati sui trattori. Il marchio si concentra su progettazioni robuste per compiti agricoli pesanti come aratura e semina. I suoi prodotti sono ampiamente utilizzati nell'agricoltura europea grazie alla loro affidabilità e prestazioni. Acquista oltre 276 ricambi originali Faster.

Marca
Faster
Part Numbers
3cpv12gasf
Unit
Each
Shape
Straight - 2 connection sides
Length
89,3 mm
Series
3CPV
Weight
354,1 g
Material
Steel
Body size
12,5 mm
Size code
BG 2
Valve type
Poppet
ISO standard
7241-A
Seal material
Nitrile rubber [NBR] Teflon (PTFE)
L1Total length
111,3 mm
Product details
Can be connected under operating pressure in the male coupling Push pull, can be connected with one hand Breakaway function ISO 7241-A Suitable for male couplings CNV Disconnecting under pressure only in emergencies Suitable plug 1/2": Faster NV12, Voswinkel SKPM12
Long description
Application range: Agricultural machinery Mineral oil-based fluids Benefits: User-friendly Details: Couple and uncouple by pushing or pulling plug (one-handed) Properties:
Outside diameter
38 mm
Working pressure
250 BAR
Surface treatment
White passivated
Flow rate at 2 bar
75 l/min
Connection no 1 type
Quick coupling
D1Connection 2, type
Thread
Max working temperature
125 °C
Connection no 1 diameter
38 mm
Connection no 1 hex size
1,06 Inch
Min. working temperature
-25 °C
Connection 2, thread type
BSPP
CHConnection no 1 hex size
27 mm
Connectable under pressure
Yes
Connection no 1 thread type
BSP
Connection 2, thread diameter
1/2 Inch
Quick connection locking type
Radial balls
Quick connection working type
Push to connect
Connection 2, threads per inch
14
Connection no 1 thread diameter
1/2 Inch
Connection 2, type - male/female
Female
Quick disconnection working type
Pull to disconnect
Connection no 1 type - male/female
Female
Produttore
Faster
