Eaton - MCSN4 - Push Button Switch, Moeller

OEM Supplier

SKU: eaton-mcsn4

Eaton - MCSN4 - Push Button Switch, Moeller

129,25 €105,94 € (IVA esclusa)

Disponibile - pronto per la spedizione

Spedizione entro 96 ore
Spedizione gratuita

Paga in sicurezza con

Prezzo

129,25 €

Protection rating IP65 Variable switching point Operating ambient temperature minimum -25°C Operating ambient temperature maximum +70°C
Eaton
Eaton specializes in hydraulic systems, power transmission, and control technologies for agricultural machinery. The brand provides components like valves, pumps, and hoses used in tractors and harvesting equipment. Its solutions enhance efficiency and reliability in demanding farming and forestry operations. Shop more than 122 genuine Eaton spare parts.

Marca
Eaton
Part Numbers
mcsn4
Unit
Each

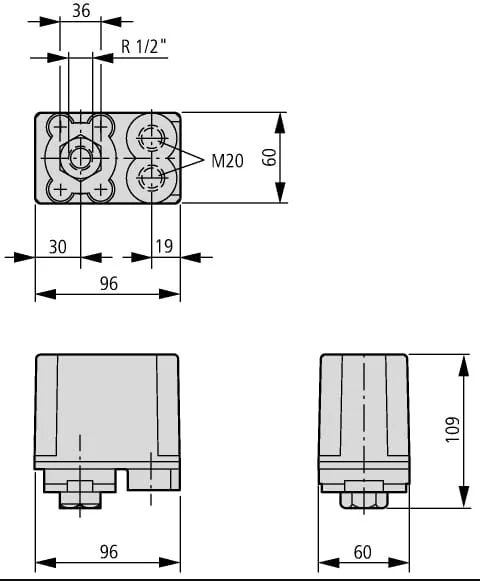

Depth
96 mm
Width
60 mm
Height
111 mm
Diameter
0 mm
Connection
Internal thread cylindrical BSPP-G (ISO 228-1)
Extra info
Cut-in pressure 0 - 3.8 bar adjustable Cut-out pressure 0 - 4.5 bar adjustable Contacts: 3x NC AC-3 400VAC 11.5A/4KW AC-3 230VAC 15A/5.5KW DC-3 24V 16A Connection: 1/2"
End setting
0.0-0.0 hPa
With display
No
Explosion-proof
No
Initial setting
0.0-0.0 hPa
Product details
Protection rating IP65 Variable switching point Operating ambient temperature minimum -25°C Operating ambient temperature maximum +70°C
Insulation class
65
Long description
MCS Pressure switches with auxiliary contacts. Equipped with 2 pre-punched connections for M20, without thread.
Bursting pressure
90 BAR
Engaging pressure
0.0-3.8 BAR
Suitable as guard
Yes
Electronic version
No
Max. test pressure
32 BAR
Medium temperature
25.0-80.0 °C
Suitable as limiter
No
Switch off pressure
0.0-4.5 BAR
With hand operation
No
Manufacturer Product ID
057679
Max. operating pressure
7000 BAR
Adjustable current range
0.0-0.0 A
Rated voltage (Ue) at DC
0.0-250.0 V
With manual on/off switch
No
Type of electric connection
Screw connection
Rated voltage (Ue) at AC 50 Hz
0.0-400.0 V
Rated voltage (Ue) at AC 60 Hz
0.0-400.0 V
Suitable as 2-point controller
Yes
Pressure-switching differential
0 BAR
Rated operation power at AC-3, 400 V
5,5 kW
Initial value measuring range pressure
0 Pascal
Rated operating current (Ie) at AC-3, 400 V
11,5 A
Number of normally open contacts as main contact
0
Number of normally closed contacts as main contact
3
Number of auxiliary contacts as change-over contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
EAN
4015080576792
Produttore
Eaton
