ALFAGOMMA - HSKPQ13 - HOSE 5/8 2PLY

SKU: alfagomma-hskpq13

ALFAGOMMA - HSKPQ13 - HOSE 5/8 2PLY

9,32 €7,64 € (IVA esclusa)

Disponibile - pronto per la spedizione

Spedizione entro 96 ore
Spedizione gratuita per ordini superiori a €60

Paga in sicurezza con

Prezzo

9,32 €

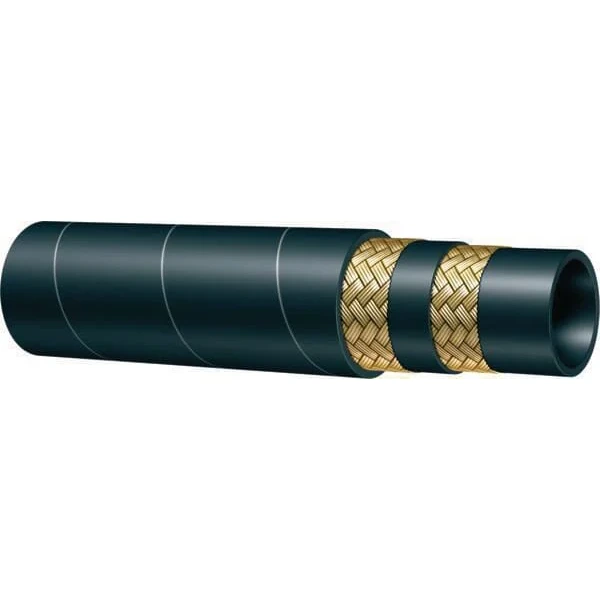

Hydraulic hose rubber compact with 2 braided steel wire layers of high tensile strength Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions HSK-PQ 32 through HSK-PQ 50 must be peeled before use Available by the metre Available on 50-metre reel, up to 1/2" Available on 25-metre reel, up to 3/4" Always consult the latest press dimensions tables, see downloads at the bottom of each web page For longer single-piece lengths, please contact our sales department
Alfagomma
Alfagomma produces hydraulic hoses, couplings, and fittings for agricultural and industrial machinery. The brand's products are used in tractors, irrigation systems, and hydraulic-powered farm equipment. Its solutions ensure leak-free connections and high-pressure resistance in demanding farming applications. Shop more than 449 genuine Alfagomma spare parts.

Marca
Alfagomma
Part Numbers
hskpq13
DN
12 mm
Pros
High operating pressure Small bending radius Extremely wear-resistant outer coating (15x vs standard) Outer coating resistant to ozone and oil
Type
Hydraulic high pressure hose
Unit
Metre
Medium
Hydraulic oil
Weight
0,52 kg/m
Approval
MSHA
Bend radius
90 mm
EN standard
857 2SC
Qty. Rounding
0.01
Burst pressure
1240 BAR
Material inside
Synthetic rubber
Number of plies
2
Product details
Hydraulic hose rubber compact with 2 braided steel wire layers of high tensile strength Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions HSK-PQ 32 through HSK-PQ 50 must be peeled before use Available by the metre Available on 50-metre reel, up to 1/2" Available on 25-metre reel, up to 3/4" Always consult the latest press dimensions tables, see downloads at the bottom of each web page For longer single-piece lengths, please contact our sales department
Material outside
Synthetic rubber
Reinforcement type
Braid
Hose inside diameter
12,7 mm
Max working pressure
310 BAR
Hose outside diameter
20,7 mm
Reinforcement material
Steel
Max working temperature
100 °C
Min working temperature
-40 °C
Reinforcement number of plies
2
Produttore
Alfagomma
